Xiaomi Redmi 9C ISP EMMC PinOUT | Test Point

     Tools like as the Unlock Tool and UMT Tool can be used to access the Xiaomi Redmi 9C ISP Pinout and test point. These tools are able to reset user data and get around FRP lock. The gadget has a 13MP rear camera, 3GB RAM, 128GB internal storage, and a Mediatek MT6765G Helio G35 CPU.

 Make sure your battery is completely charged and that the USB port is operational before using these tools.

Xiaomi Redmi 9C ISP EMMC PinOUT | MTK Download Mode | Test Point

You will be able to access the Xiaomi Redmi 9C ISP Pinout with the aid of this instruction. You can reset your user data and get around the FRP lock by using the ISP Pinout and a tool like the Unlock Tool or UMT Tool. The guide provided below has more details.

With mid-range hardware specs, including a Mediatek MT6765G Helio G35 CPU, 3GB of RAM, 128GB of internal storage, and 13MP rear cameras, the Xiaomi Redmi 9C was just unveiled. The tested pinout and test point for the Xiaomi Redmi 9C EMMC ISP are displayed in this tutorial.

Screen locks, fingerprints, and patterns on the Xiaomi Redmi 9C can be removed with UnlocTool, UMT Tool, and UFI Box. No matter how much experience you have with Android software, using this solution will solve the issue right away. Your USB device is malfunctioning if the notice "USB not recognized" appears. This approach can only be used if your USB port is functional and your battery is fully charged. Please don't forget to ask questions in the comments section, and I will try my best to respond.

What is Xiaomi Redmi 9C ISP Pinout?

Read More:- Samsung Galaxy M12 M127F ISP EMMC PinOUT | Test Point

The Redmi 9C from Xiaomi stores data on eMMC storage, and programming or reprogramming the storage requires the knowledge of the eMMC ISP Pinout.

   Programmers and device service professionals can read, write, and erase data with the use of the pins on the eMMC ISP Pinout, which are normally reserved for power, ground, data transfer, and control signals. Depending on the device and programmer, these pins may have different numbers and purposes.

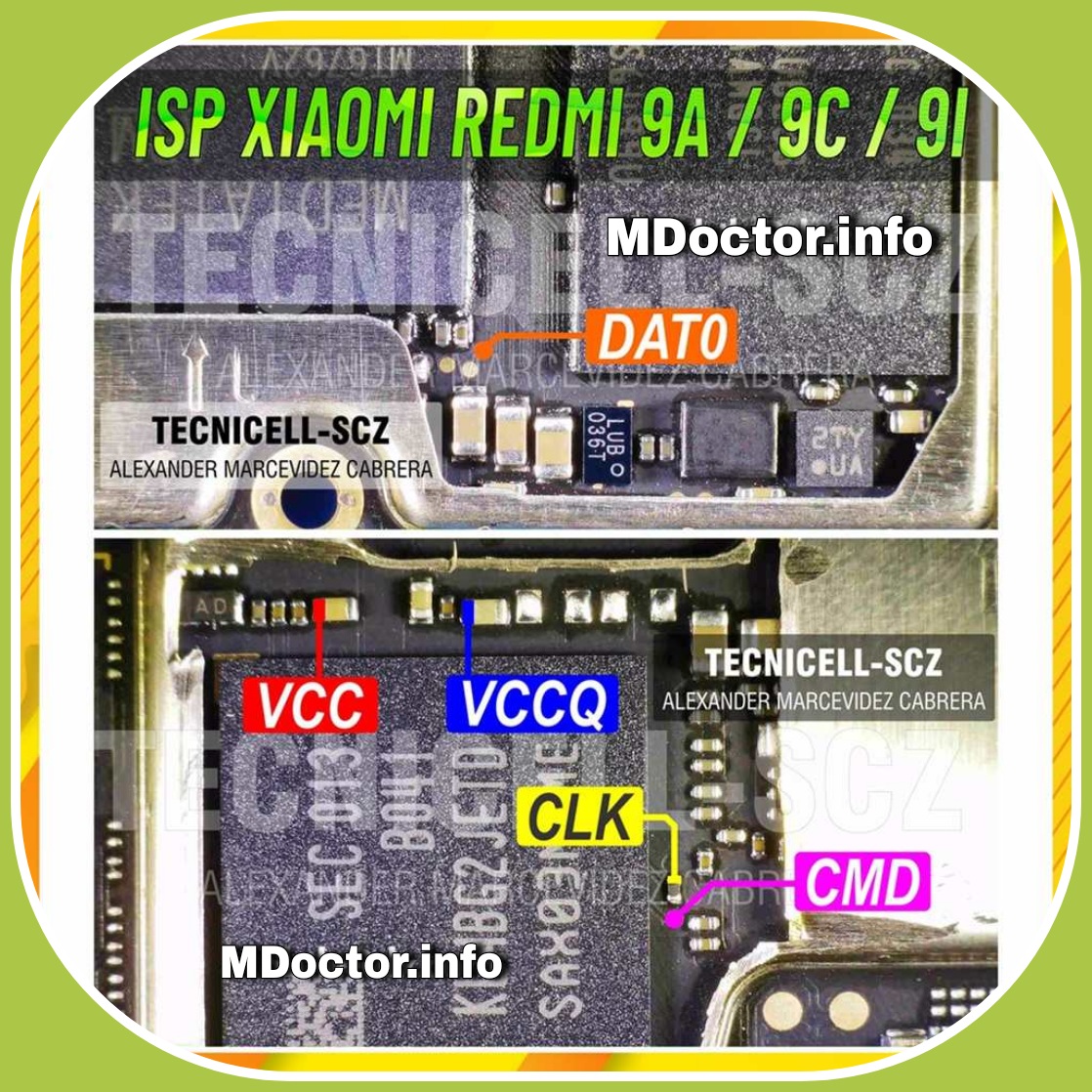

Xiaomi Redmi 9C ISP EMMC Pinout Image:

Hardware Process

• Remove your phone's back cover. Next, unplug the motherboard from the existing battery, fingerprint reader, and camera.
• Take out the motherboard, remove the screws, and store it in a secure location.
• Locate the device's six eMMC pins. VCC, GND, Dat 0, CLK, and VCCQ are the pins. You will need to cut through a steel cover in order to reach them.
• Extract the adapter from the UFI packaging. You will notice the identical pins in the connector I mentioned in the previous step.
• Between the base and the adapter, there are four jumpers. Soldering Dat0, CLK, CMD, and GND is required. In order for the VCC and VCCQ to switch off, I left them on the USB.

Two of the most potent software programs available for resolving Xiaomi Redmi 9C ISP EMMC PinOUT | Test Point phones' dead booting are the Unlock Tool and the UMT Tool. Those boxes obscure the startup screen on the phone in the case that the incorrect firmware is flashed. To repair boots, these boxes are required. Certain brands prohibit the removal of locks, such as patterns and PINs.

How to Use Easy JTag with UFS Pinout

Read More:- Samsung Galaxy A22 A225F ISP PinOUT | Test Point

Download the Latest UnlockTool Setup From here.

Locate the PinOUT/Test Point on your device by looking at the image above.

Make sure you follow the software guidelines. Alternatively, you can use the UMT Tool.

Thank you for reading this guide on finding Xiaomi Redmi 9C.
